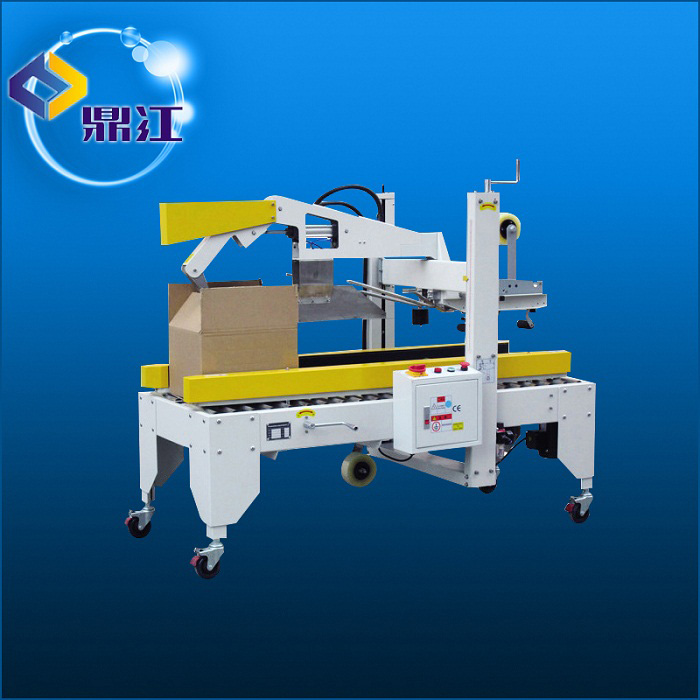

DJ - FX automatic cartoning sealing machine, automatic carton cover folding, smooth, and sealing the same homework, beautiful and effort, can be used with automatic packing machinery series.

1、Technical parameters:
Machine      model   :DJ - FX
suit cartons size    L: 200-600 - mm W: 150-500 - mm H: 150-500 - mm
Sealing speed 　　18 to 25 cases per minute
Use tape　　　　48/60/72 mm
Mesa height 　　　650-800 - mm
Using air source　5 to 6 kg/m
Power supply 　　110 v / 220 50 to 60 hz
Overall dimension    L2300 x650W*1500H
The weight　　　　 400 kg

2、Product features:
1, fluctuation belt transmission, the main transmission mechanism using special perlin high precision, low noise, increase the service life of the belt.
2, can adjust the Angle on both ends of the carton production tape length: 55 mm, 65 mm, 75 mm.
3, no tape alarm series, open the door automatic stop device, ensure the security of the maintenance.
