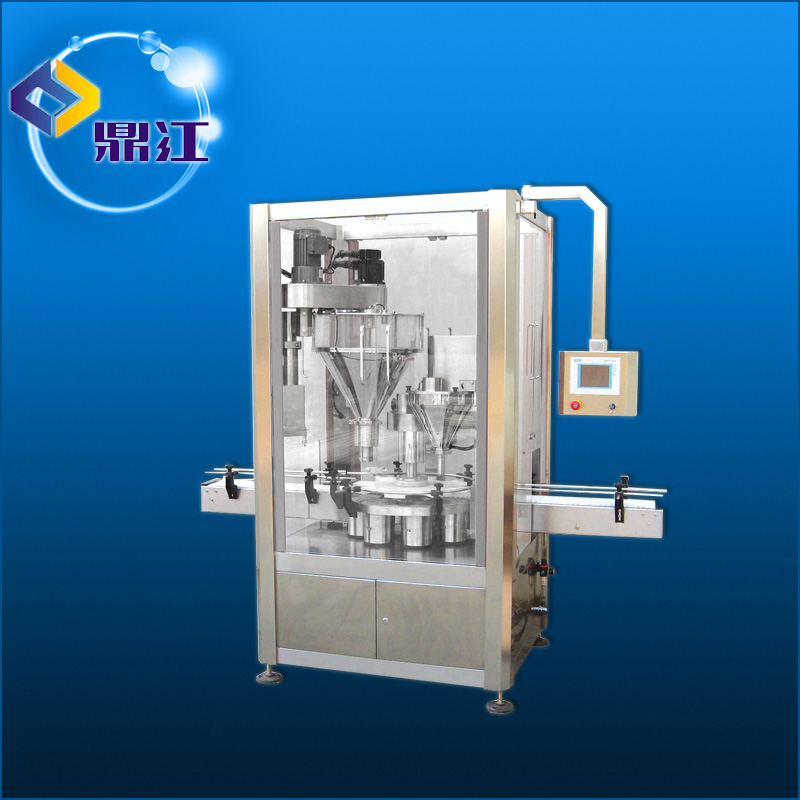

DJ-2B2This automatic canned filling and packaging machine was designed for automatic can feeding ,weighing ,filling ,Feedback and failed packs inspect & reject. The machine is suitable for packaging powdery &grainy product ,for instance ,milk powder ,monosodium glutamate ,solid beverage ,icing sugar ,dextrose ,feed ,coffee ,solid medicament ,powdery &grainy additive ,dye ,etc.

1、Technological  parameters：
Model ：DJ-2B2
Dosing Way Auger filling with instant weight feedback
Filling Weight： 10-5000g
Packaging Accuracy ：≤±0.3-1%
Packaging Speed： 15-30 Cans/min
Power Support/Total Powder ：380V/50-60Hz / 2kw
Container Size Cylindrical containers with a diameter of 50-180mm and a height of 50-350mm
Overall Dimensions ： 2500mm×1245mm×2300mm
Total Wight： 450kg
Use Tolerance/Air pressure ：0.2m3/min  6-8kg/cm2


2、Product  feature：
Equipped with automatic can/bottle feeding system, implement to the functions of no-can-no-filling.
Open-door hopper ,a frame type machine be designed the humanization to easily wash.
Reasonable mechanical structure ,easy to change size parts and clean up.
The functions of over-weight warning ,error message display and failed packs inspecting &rejecting ,which never let any reject to pass through, ensure the packing quality .Have the functions of can support, vibration and dust extraction.
This dual filling machine with high accuracy is designed in terms of the National GMP Standard, suitable for packaging powdery in cans or bowls.
Automatic and circulative empty cans peeling off.
Automatic twice check,circulative reinforce.
Working states& operation messages shows in Chinese/English by color touch screen HMI PLC has better stability , faster responding speed and higher weighing precision.
Filling system is driven by three sets of servo motor, accurate positioning, high precision and settable rotary speed.
