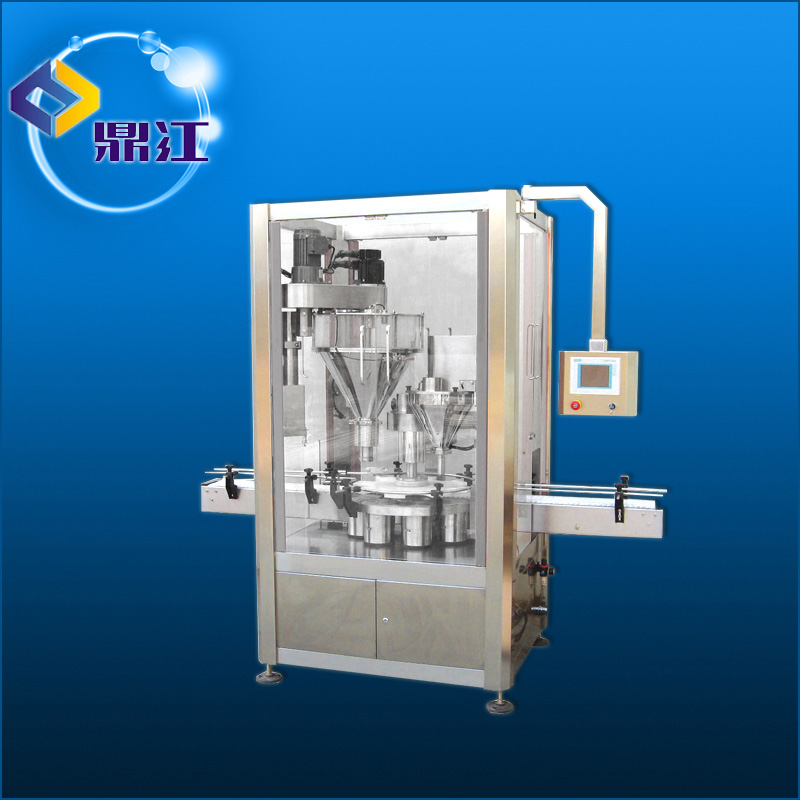

DJ-2B3This automatic canned filling and packaging machine was designed for automatic can feeding ,weighing ,filling ,Feedback and failed packs inspect & reject. The machine is suitable for packaging powdery &grainy product ,for instance ,milk powder ,monosodium glutamate ,solid beverage ,icing sugar ,dextrose ,feed ,coffee ,solid medicament ,powdery &grainy additive ,dye ,etc.

1、Technological  parameters ：
Model ： DJ-2B3
Dosing Way Auger filling with instant weight feedback
Filling Weight ： 10-5000g
Packaging Accuracy  ：≤±1.5g
Packaging Speed ： 20-50 Cans/min
Power Support/Total Powder  ：380V/50-60Hz / 3.5kw
Container Size Cylindrical containers with a diameter of 50-180mm and a height of 50-350mm
Overall Dimensions  ： 3330*1200*2300mm
Total Wight  ：700kg
Use Tolerance/Air pressure ： 6-8kg/c㎡  0.2m3/min

2、Product  feature：
This dual filling machine with high accuracy is designed in terms of the National GMP Standard, suitable for packaging powdery in cans or bowls.
The machine has second weighting and filling after the first filling to make sure high accuracy and packing speed;
Automatic and circulative empty cans peeling off. Automatic twice check, circulative reinforce.
Working states& operation messages shows in Chinese/English by color touch screen HMI PLC has better stability , faster responding speed and higher weighing precision .
Filling system is driven by three sets of servo motor, accurate positioning, high precision and settable rotary speed. reasonable mechanical structure, easy to change size parts and clean up.
Through changing accessories, the machine is suitable for multiple products, no matter super fine powdery or large grains .Have the functions of can support, vibration and dust extraction.
