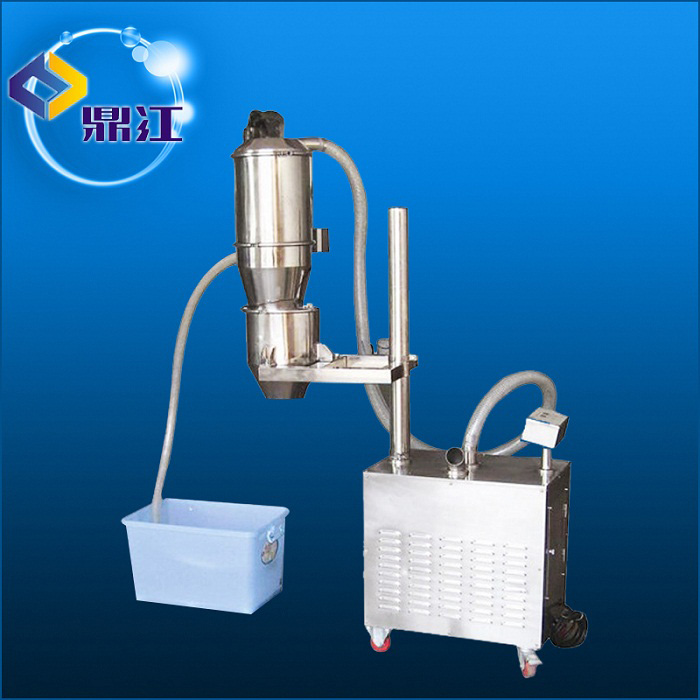

DJ-vacuum conveyor, this machine is suitable for powder, granular material, vacuum conveying powder aggregate mixture.

1、Technological  parameter：
Machine Capacity ：2000KG/H(Other capacity optional)
Machine Power ：5.5kW
Power Supply：3P-380V 50-60 Hz
Conveyor Height：1800mm from floor
Machine weight：150Kg

2、Product  feature ：
Vacuum loader applies vortex pump to make the material –inlet hole and the whole system in vacuum state. Granules and powder is sucked into the inlet hole and forms a material flow .
Material is separated into the hopper after sucked with the air . eventually controlled by the hopper is controlled by the three-way valve ,which eventually controlled by the control center .
There is a reverse-flushing device in the loader ,to flush the material on the filter back and ensure the loading process is well continued.
